UV-7BC Elevator Control Valve
If you are unsure what size valve you need, consult our Interactive Valve Sizing App or the UV-7BC Valve Sizing PDF. If you still are unsure, fill out the Control Valve Quote form. If you don't require constant down speed control, order the UV-7B.
The standard EECO UV-7B control valve is designed for applications where pressure requirements are between 50 - 500 psi (3.5 - 34.5 Bars) with flow rates of 75 to 375 GPM (285 - 1419.5 l/min).
All EECO valves manufactured since January 2001 contain high temperature Viton seals throughout as a standard feature.
The UV-7B hydraulic control valve performs all the necessary functions for the operation of a hydraulic elevator in
both directions of travel. The UV-7B is the ideal solution for low pressure, high flow rate applications. The UV-7B is
capable of handling flow rates of 105 to 375 gpm.

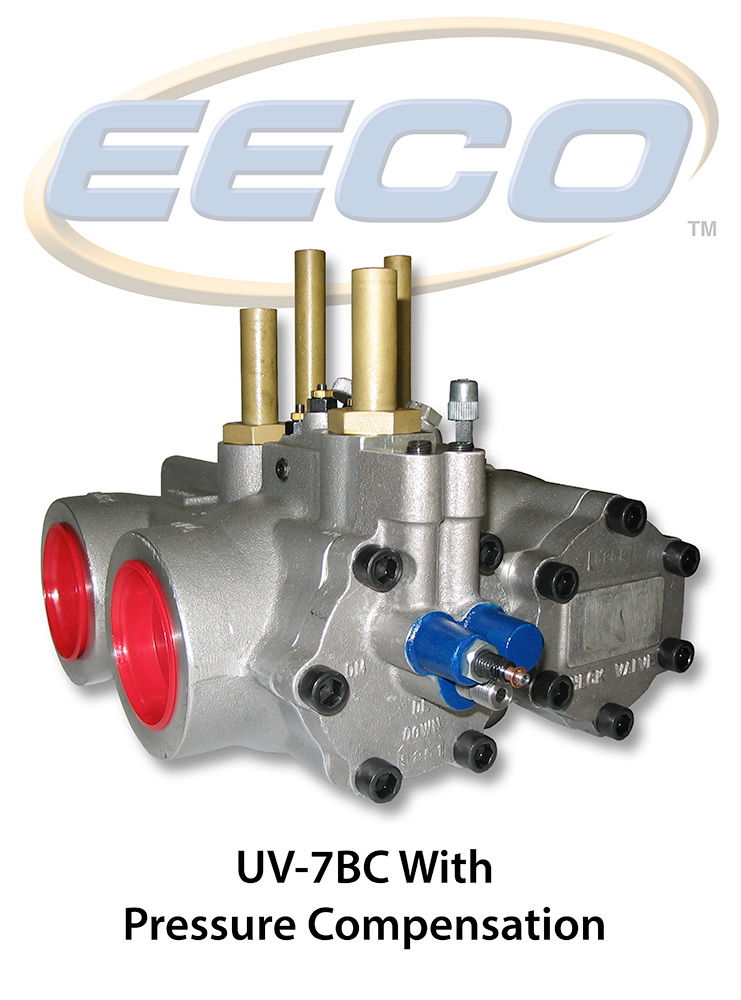

The optional UV-7BC also offers Pressure Compensation for constant down speed control.
This modification of the down piston assembly delivers constant Down Speed Control
between no load and full load conditions.
