Submersible Power Units

All EECO facilities are currently open during normal business hours in order to serve our customers. If this situation changes, we will provide information here.

Submersible Power Units

Description

EECO Submersible Power Units are designed with the directly connected pump and motor submerged in the oil reservoir. The control valve and muffler are mounted in the tank above the maximum oil level, providing access for valve adjustment.

The control valve and muffler can be located above the tank when greater oil capacity is required. Submersible pumps and motors are less costly than comparable air-cooled components and are designed to allow for quick and easy installation. The insertion of the pump and motor in the oil helps to dampen noise generated during operation.

Because the pump and motor are directly connected, and the flow of the pump is a result of the speed of the motor, Gallons per minute output flow is a consequence of available pump sizes.

Commercial Submersible Power Units

  • EECO UV5-BT Control Valve
  • EECO Silencer
  • Thermal Switch (Preset To 145°F)
  • Isolation Anchoring System
  • Oil Level Liquid Gauge
  • 80 Starts Per Hour
  • Pressure Gauge Fitting with 1/8” Shut Off Valve
  • Valve Return Filter (VRF)
  • 120 Starts Per Hour
  • Tank Mounted Starter Enclosure
  • Motor Starter
    • Wye-Delta
    • ATL
    • Solid State
  • Adjustable Load Weighing Switch
  • EECO Muffler
  • EECO Highly Effective Dampener
  • Oil Heater
  • Maxton Control Valves
  • Low Pressure Switch
    • N.O
    • N.O./N.C.
  • Viscosity Switch
  • Low Oil Switch
  • Hand Pump for Roped Hydraulic System
  • OSHPD Approved Anchoring System
  • Constant Down Speed
  • Pre-Wired (JBox and Terminals)
  • Charcoal Breather

Flat Bottom Commercial Submersible Power Units

EECO Commercial Flat Bottom Submersible Power Units are available in two depths, 18” and 24”. The 18” power units are the most compact and are particularly useful where Machine Room space is at a premium. They are lightweight for ease of handling, very quiet, and highly efficient. They are also our most economical units. EECO can also design and manufacture fully customized power units per the customer’s specifications.

Flat bottom commercial power unit chart and drawing

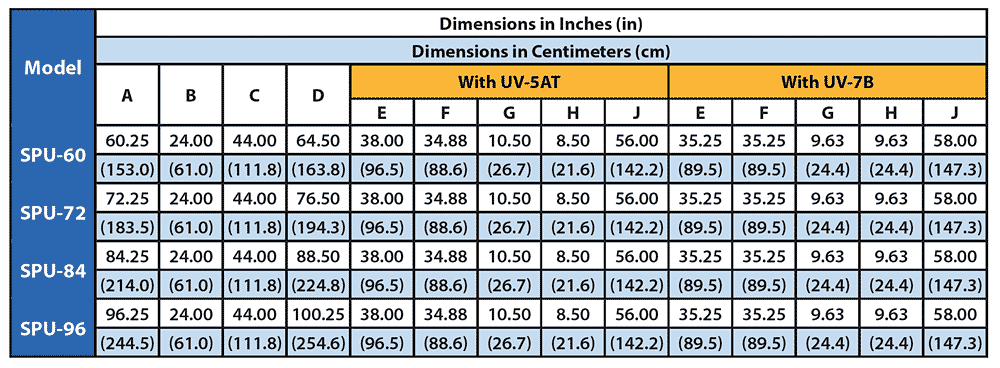

V-Bottom Commercial Submersible Power Units

EECO’s Commercial V-Bottom Submersible Power units are available in 60”, 72”, 84”, and 96” lengths and are 24” deep. Usable oil volumes range from 71 gal. to 180 gal. depending on size and configuration.

Residential, LULA, and MRL Power Units

EECO Residential, LULA, and MRL Power Unit image

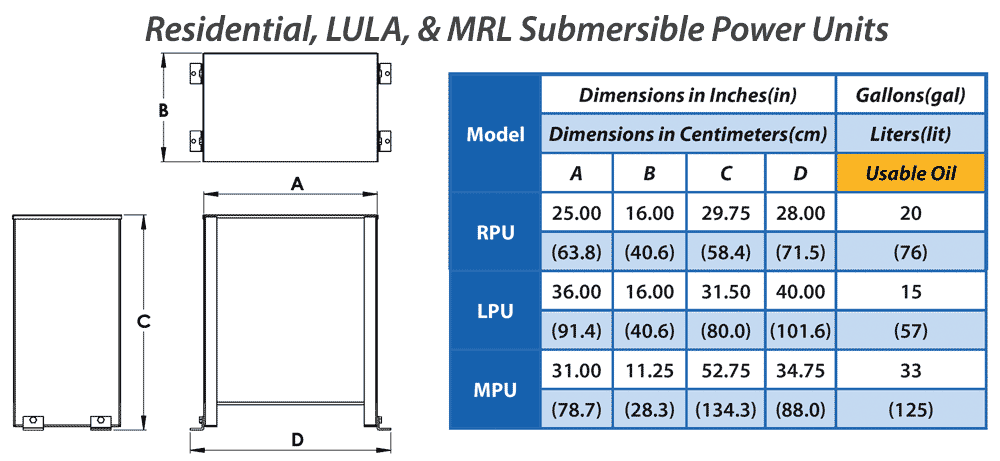

EECO Residential, LULA, and MRL Power Unit chart
