The Pressure Gauge Fitting & Low Pressure Switch System is used to provide a means of attaching a Pressure gauge to the control valve. It is provided with a 1/8 brass shut off valve and a male quick disconnect fitting and a low pressure switch. The option of a N.O or N.O./N.C switch is available. Part No. 5707

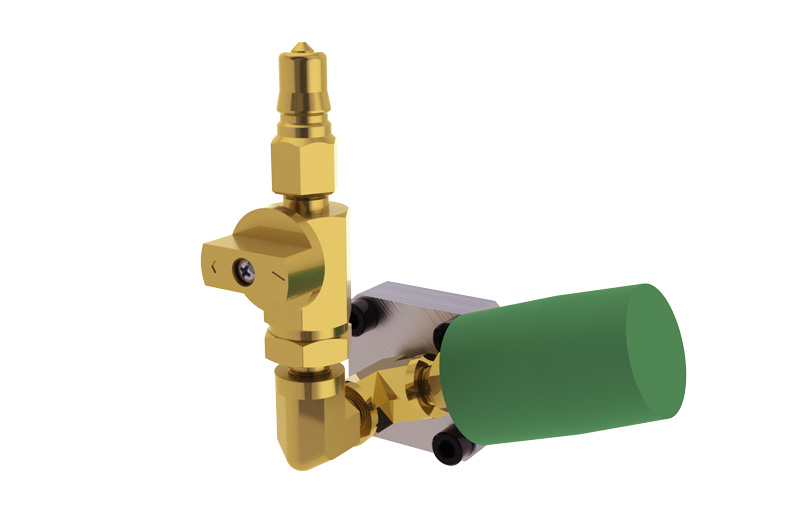

Standard mounting arrangements of a pressure gauge fitting with shutoff valve on the Jack side of the check valve on a UV-4R, in accordance to ASME A17.1/CSA B44 22.214.171.124. The flange is part of the valve and is shown for illustration purposes only.
